50W RGB Color Changing LED Floo
Item Type: AT440F-M50RGB
- LED chip:41pcs 3W rgb
- Item Type: AT440F-M50RGB
- IP Rating: IP65
- Lamp Power(W)50w
- Voltage(V): AC 100-277V
- Warranty(Years): 2

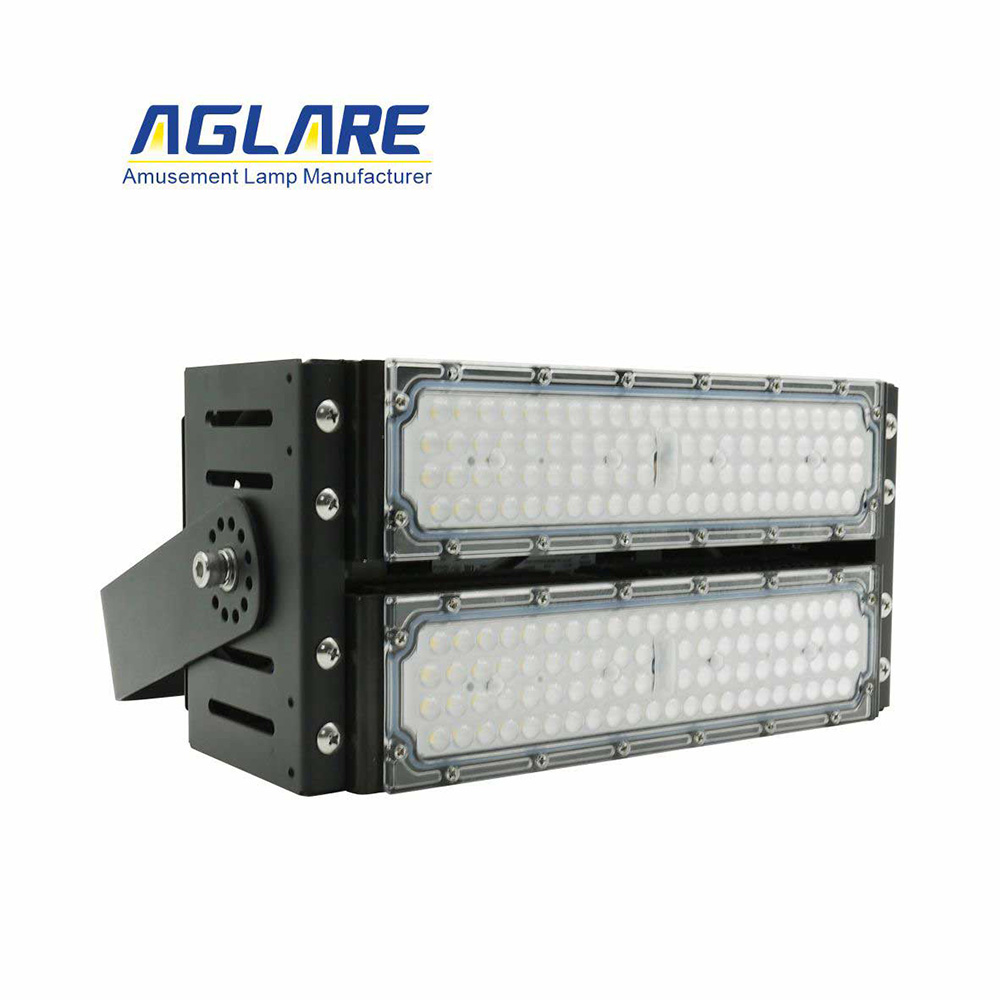

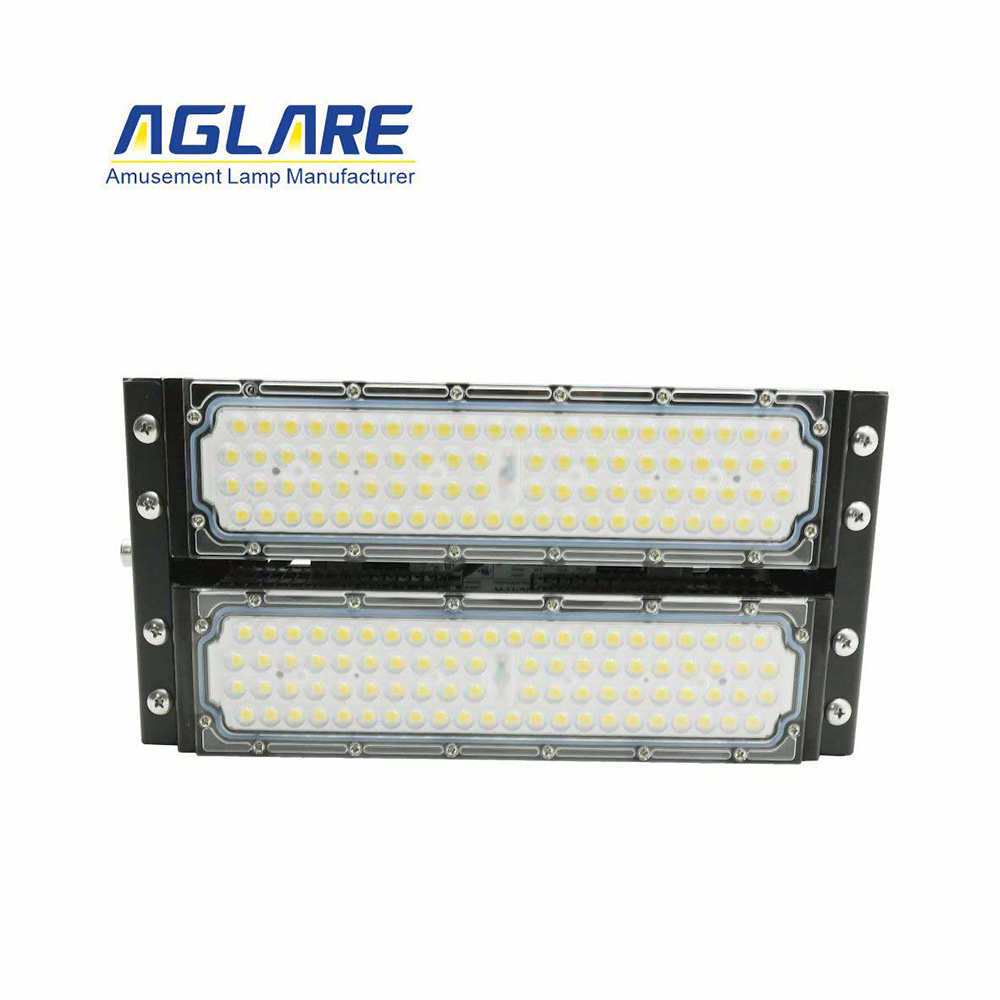

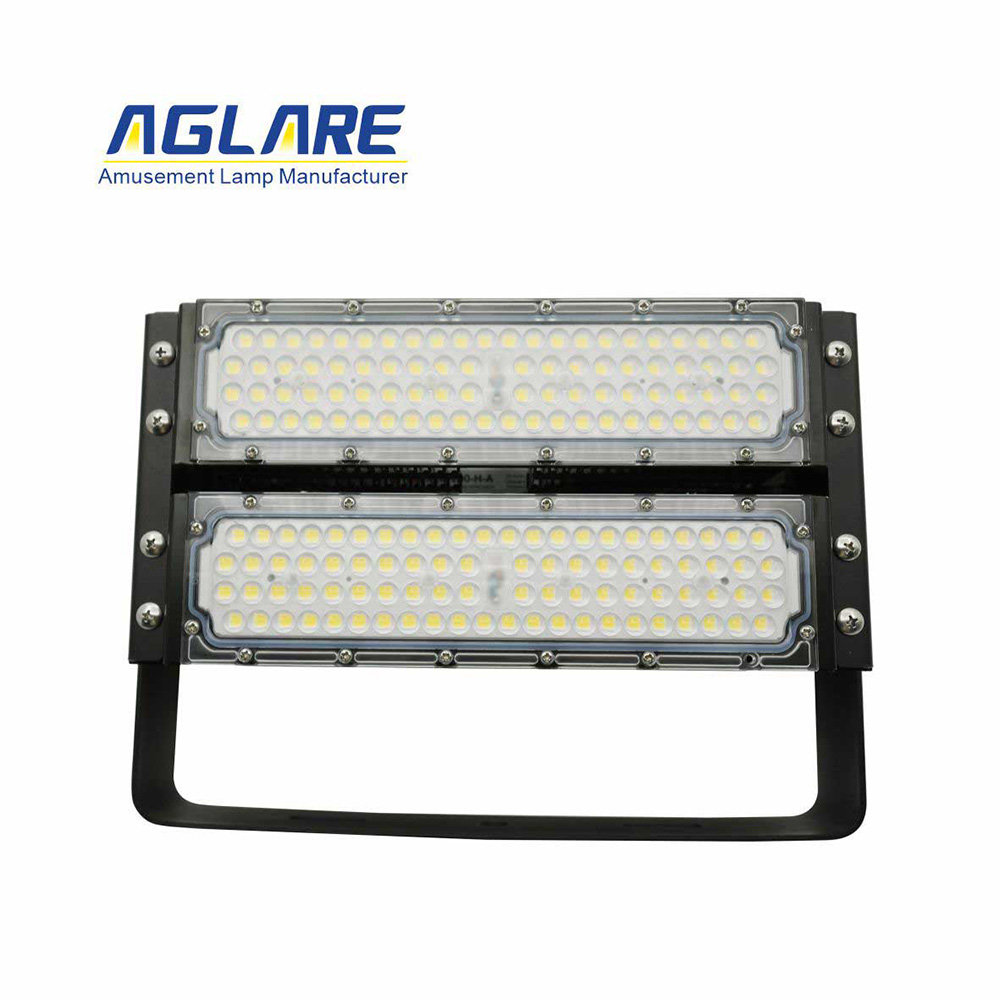

200W LED Football Field Lights Outdoor Stadium Lighting
Item Type: AT843-M200W60-60-HG
- LED chip:168pcs 3030LED
- Item Type:AT843-M200W60-60-HG
- IP Rating: IP65
- Lamp Power(W): 200w
- Voltage(V): AC100-277V
- Warranty(Years): 2
Add to
Inquiry
- Product Details
- Parameters
- Structure
- Application
- Package
- Downloads
LED stadium light 200W Football Field Lights Product Introduction:
At all play levels, LED football field lights are becoming more and more common. Better visibility is made possible by these lights for journalists, broadcasters, players, coaches, and fans. Every second matters on the football field, and optimal performance depends on having the right lighting. Football fields receive excellent, glare-free, brilliant lighting from LED lighting. LED lighting is the best option if safety and environmental friendliness are top priorities because it doesn't emit any hazardous UV or infrared radiation or mercury.
Product Features:
1.Aglare Lighting specializes in producing high-power LED football field lights for Stadium Lighting.
2.The 200W LED Football Field Lights offers adjustable beam angles for customizable lighting solutions.
3.This portable module does not emit harmful UV or IR radiation, ensuring a safe environment.
4.With its long lifespan and energy-saving features, this floodlight offers optimal efficiency.
5.The high cooling efficiency of the aluminum shell ensures prolonged durability.
6.Designed with IP65 waterproof rating for reliable performance in any weather condition.
| Product Parameters | ||
|
|
Model No: | AT843-M200W60-60-HG |
| Power: | 200W | |
| LED type: | 168pcs 3030LED | |
| Input Voltage: | AC100-277V | |
| operating frequency: | 50/60HZ | |
| power-supply efficiency: | 93% | |
| power factor: | ＞0.9 | |
| CRI: | 70/80 | |
| Luminous Efficiency: | 130lm/W-160lm/W | |
| LED light source life: | 50000H | |
| operating ambient temperature: | -40℃~50℃，20%~90% H.R | |
| storage temperature: | -45℃~55℃，10%~90% H.R | |
| operating ambient temperature: | -40℃~50℃，20%~90% H.R | |
| Luminaire material: | aluminium +Q235 | |
| Beam Angle: | 60° | |
| Weight: | 5.5KG | |
| Defend grade: | IP65 | |
| Warranty : | 2Years | |
Application:
Aglare lighting LED floodlights support flexible assembly with different wattages from 200W to 400W. As the main light source for large-area lighting, it is widely used in sports venues, football fields, basketball courts, tennis courts, rugby fields, racetracks, cricket fields and other scenes and sports field lighting.

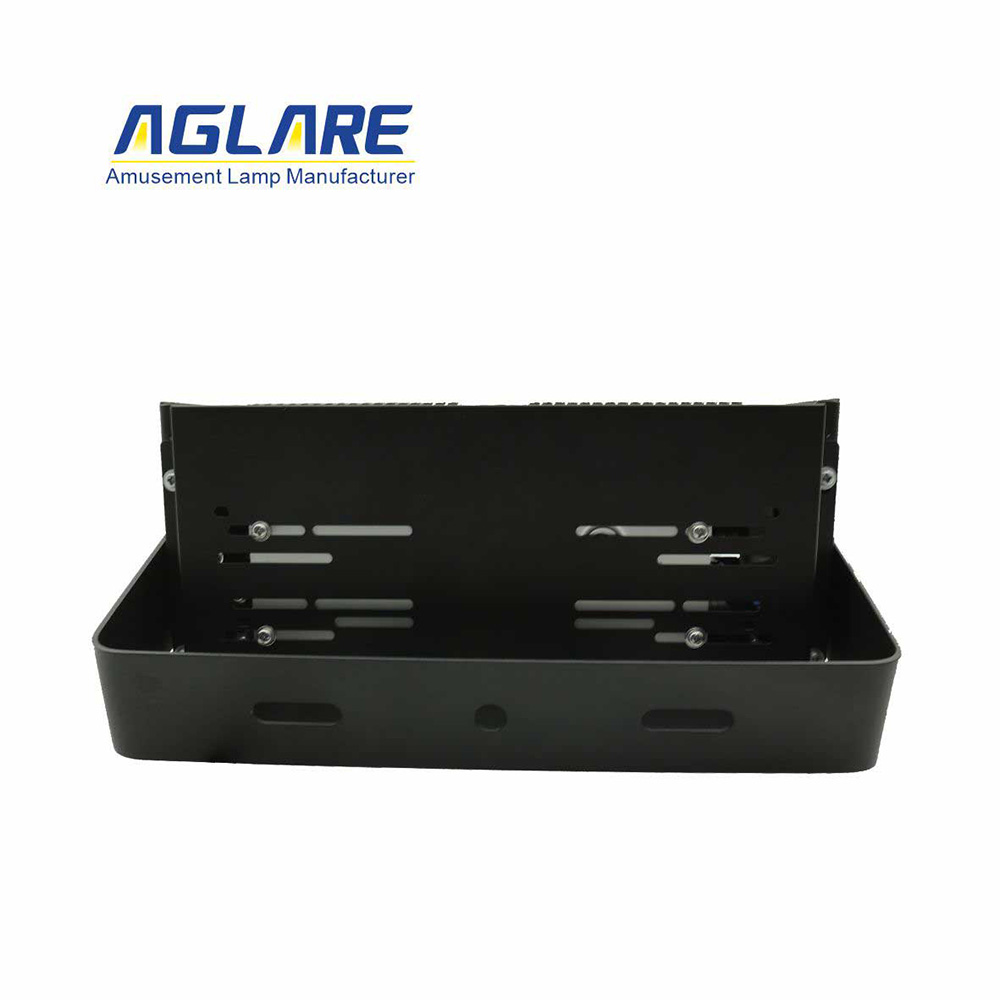

Modular system, Maintenance free of tools,Light and resistant,Easy Installation
What is Football field Lights?
The purpose of football field lighting is to illuminate a football field. Installed at a height of 70 feet on average, they can reach up to 250 feet over the pitch in professional stadiums. These days, the majority of them are LED-based for maximum efficiency, and they use expensive narrow beam optics to illuminate the ground without creating glare.
How to install Aglare 200W LED football field lights?
The 200 watt LED football field light Beam Angle Adjustable Portable Module operates simply and is simple to install. It only needs to be connected to a power source, then the beam angle may be changed to meet your illumination needs. You may easily utilize it in a variety of outdoor settings because to its portable design.best outdoor commercial flood lights.
The lighting of football fields plays a vital role in night games. For the audience, their experience depends heavily on the lighting system settings. For players, the lights must provide enough coverage so that they can use their skills to the fullest.
Football field lighting is a design with strong functionality, high technology, and a relatively high degree of difficulty. Football stadium lights not only must they meet the standards of various levels of football events, but also pay great attention to the actual effect of the real-time color TV broadcast. In order to ensure that the broadcast images are vivid and clear, and the colors are true, there are corresponding regulations on the vertical illuminance, uniformity of light intensity, spatial three-dimensionality, color temperature, and color rendering index of the light source, and the lighting standards of different levels of football fields are different.
※Please read the instructions carefully before use:
1. If any wire is damaged, it should be replaced by a qualified professional to avoid danger.
2. Please cut off the input power when the lamp works abnormally
3. Please take lightning protection measures and ensure that the input voltage is stable
4. Please place the lamps in a dry, ventilated and clean environment, and clean and maintain them regularl
5. There is high voltage inside the lamp, please do not disassemble it by yourself to avoid electric shock
-
