500W LED Tunnel Light High Brightness Flood Light
Item Type: AT447-M500W
- LED chip:600pcs 3030LED
- Item Type: AT447-M500W
- IP Rating: IP65
- Lamp Power(W)500w
- Voltage(V): AC 100-277V
- Warranty(Years): 2
Add to
Inquiry
- Product Details
- Parameters
- Structure
- Application
- Package
- Downloads

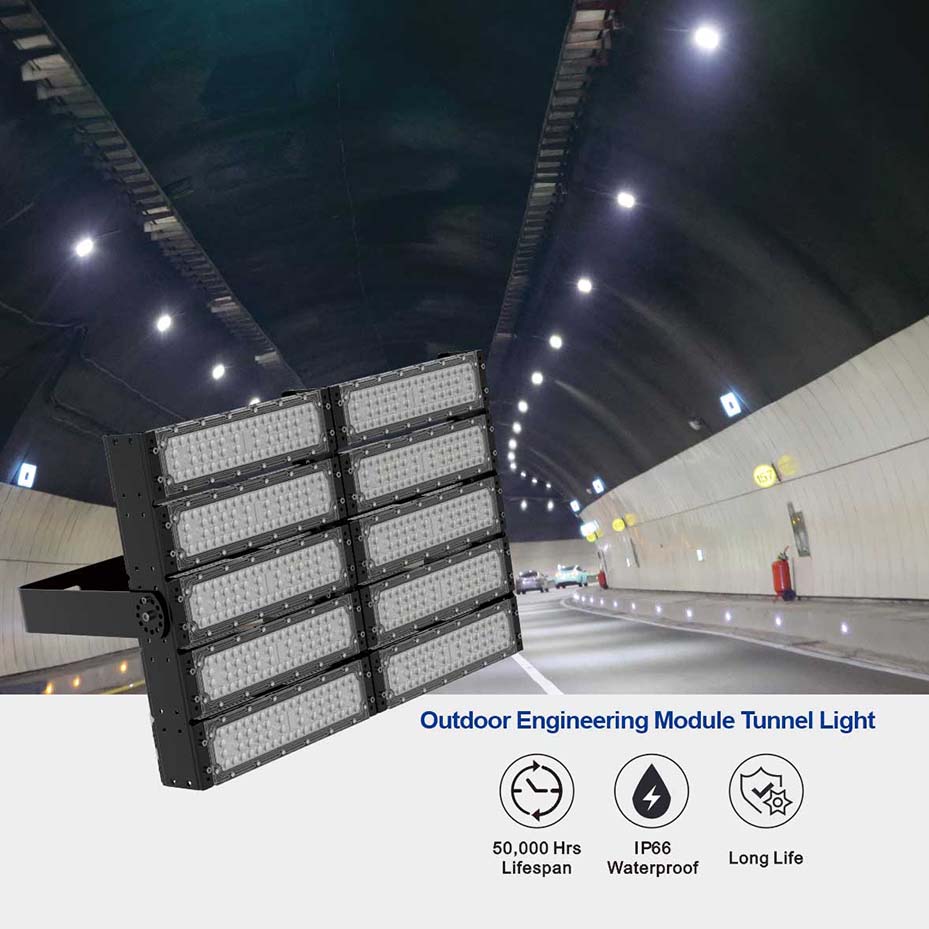

High-power 500W LED tunnel flood lights Module 130lm/W-160lm/W projector light is suitable for use in all tunnel and underpass areas for roadway and railroad applications.with adjustable lighting angle
500W LED tunnel flood light Product Features:
1.High-Quality Design: Our 500W LED Tunnel Light LED Flood Light is made with an aluminum shell and a modular design for superior heat dissipation.
2.Energy-saving: This tunnel flood light uses high-quality LEDs as its light source because they are efficient, bright, and environmentally friendly. It can save more than 50% of the energy used by conventional light sources.
3.This LED Tunnel Flood Light is lightning-proof, waterproof to IP65, and capable of withstanding any weather.
4.Light weight: Using fin high heat conduction radiator, light weight, easy installation and maintenance, safe and reliable.
5.Green and environmentally friendly, using lead-free and mercury-free process
| Product Parameters | ||
|
|
Model No: | AT447-M500W60-60 |
| Power: | 500W | |
| LED type: | 600pcs 3030LED | |
| Input Voltage: | AC100-277V | |
| operating frequency: | 50/60HZ | |
| power-supply efficiency: | 93% | |
| power factor: | ＞0.9 | |
| CRI: | 70/80 | |
| Luminous Efficiency: | 130lm/W-160lm/W | |
| LED light source life: | 50000H | |
| operating ambient temperature: | -40℃~50℃，20%~90% H.R | |
| storage temperature: | -45℃~55℃，10%~90% H.R | |
| operating ambient temperature: | -40℃~50℃，20%~90% H.R | |
| Luminaire material: | aluminium +Q235 | |
| Beam Angle: | 60° | |
| Weight: | 15.2KG | |
| Defend grade: | IP65 | |
| Warranty : | 2Years | |
500W LED Tunnel Light Product Description:
Aglare Lighting is a professional manufacturer of high-power LED floodlights for outdoor engineering lighting.LED tunnel flood light is one of our hot selling products. Our factory can produce from 50W / 100W / 150W / 200W / 250W / 300W / 400W/ 500W for Underpass Tunnel Lighting Module LED Tunnel flood Lights.We warmly welcome you to buy or wholesale bulk LED tunnel lights LED floodlights from our factory.Wholesale Outdoor engineering module tunnel lights.
Specifically created for use in tunnels and underpass situations, the 500W LED Tunnel Flood Light is a high-quality outdoor lighting option. Utilizing cutting-edge LED technology, the light source ensures excellent brightness while using less energy than conventional light sources. As a result, it is both economical and environmentally benign.
The longevity and heat dissipation of this LED Flood Light are exceptional thanks to its modular design and aluminum casing. Due to its IP65 protection certification, which makes it dust-proof, waterproof, and lightning-proof, it can resist a variety of weather situations. For enduring performance, you can count on its excellent impact resistance, rust-proofing, and corrosion resistance.
FAQ (Frequently Asked Questions)
Q1.How to install Aglare 500W LED Tunnel Flood Light Underpass LED Lighting?
The 500W LED tunnel lights LED Floodlight Beam Angle Adjustable Portable Module operates simply and is simple to install. It only needs to be connected to a power source, then the beam angle may be changed to meet your illumination needs. There were no harsh lights or other uncomfortable reactions in any area.
Q2. What are the advantages of Aglare Lighting LED Tunnel Flood Light?
a. Aglare Lighting is one of the manufacturers specializing in the production of outdoor engineering modular tunnel lights.
b. We already had world wide customer and most of them located in USA, UK, France, Germany, Spain, Australia,Mexico , Italy, United Arab Emirates, Czech Republic, Belgiumetc.
Q3.How long is the delivery time of LED Tunnel Flood Light?
a.usually we had meterial in stock , regular order delivery time 3--7 days after the order (PI) paid.
b.Custom products 8--15 days (Custom PCB)
Q4. Does this LED Tunnel Flood Light provide good heat dissipation? A: Absolutely! This LED Tunnel Light LED Flood Light is designed with modular structure and aluminum housing to ensure excellent heat dissipation and durability to prolong the life of the product.
Q5.Is this floodlight safe to use in areas with unstable voltage? A: Yes, it is equipped with a high efficiency constant current driver, allowing it to work in places with unstable voltage.
Whether you need LED tunnel flood lights for a road or rail underpass, choose Aglare Lighting for professional-grade engineering lighting solutions. With our superior products, extensive range of options, and commitment to customer satisfaction, we are confident that you will be more than pleased with your decision to trust Aglare Lighting for all your outdoor lighting needs.
Contact us today to learn more about our LED tunnel lights and how they can enhance the safety and visibility of your tunnel and underpass areas.
-
