100W Modular LED Tunnel Light Grey

Item Type:

  • LED chip:120pcs 3030LED
  • Item Type: AT441-M100W60-C
  • IP Rating: IP65
  • Lamp Power(W)100w
  • Voltage(V): AC 100-277V
  • Warranty(Years): 2
Add to
Inquiry
  • Product Details
  • Parameters
  • Structure
  • Application
  • Package
  • Downloads

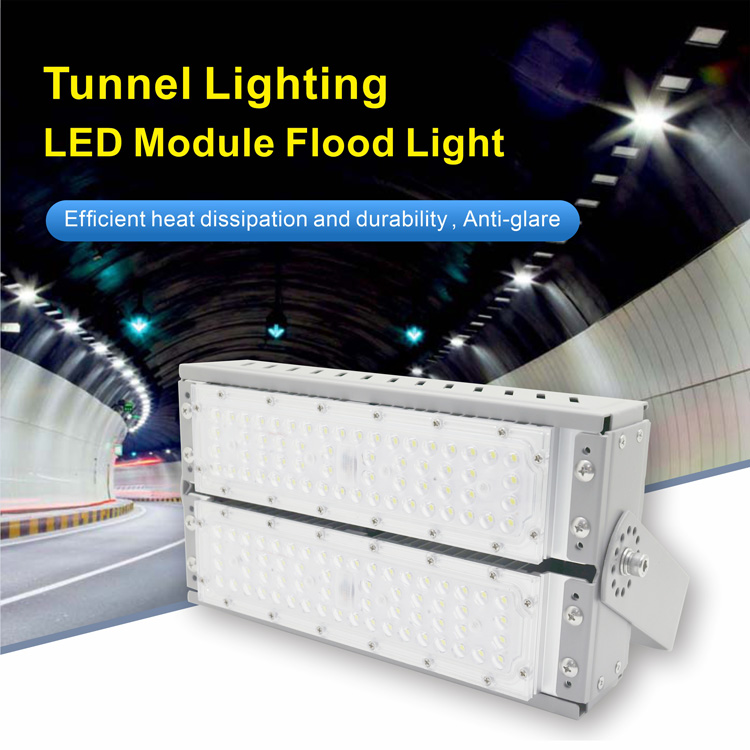

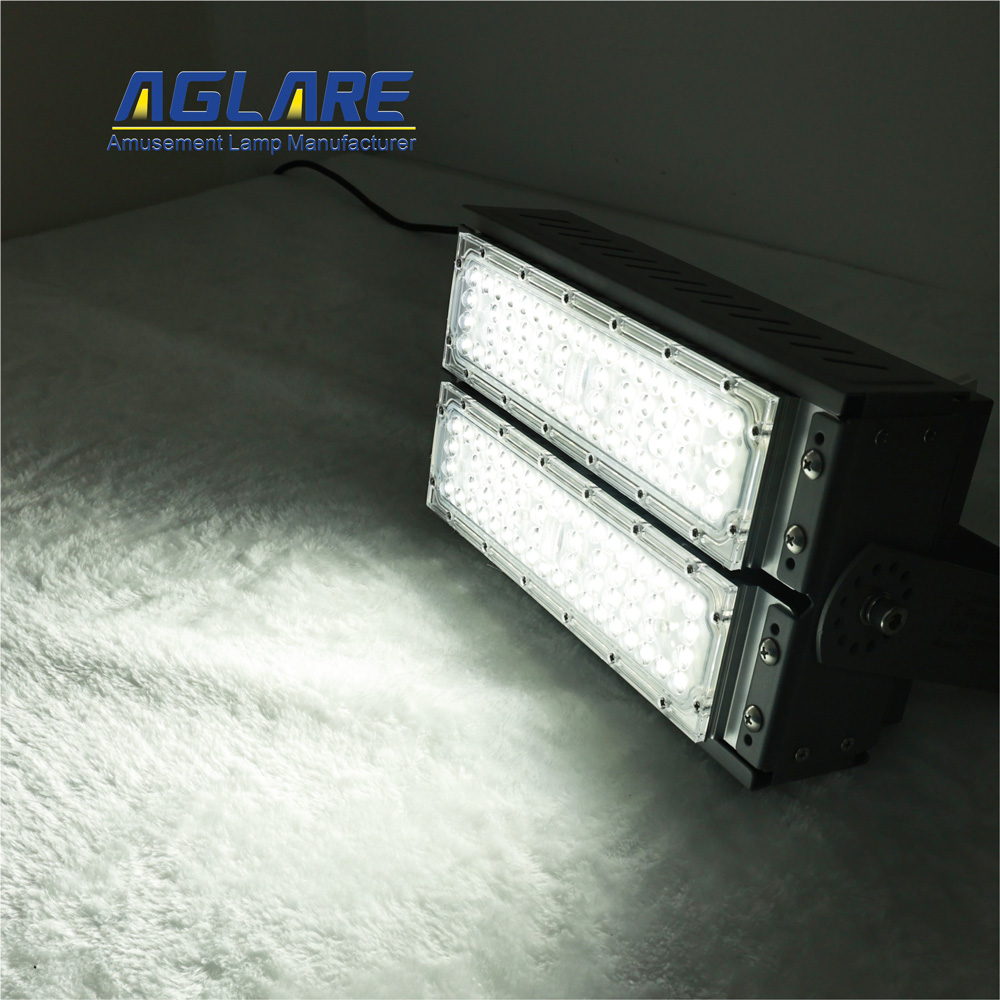

100W LED Tunnel Light and Underpass LED lights

1. Innovative Modular Design
Our LED tunnel lights boast a modular design with a single module power of 50W. The larger luminous points and lamp beads offer higher brightness for comprehensive coverage.

2. Superior Chip Quality
The 5054 type lamp bead embedded in our lights surpasses regular chips in brightness and durability. It offers improved visibility and longevity.

3. Efficient Heat Dissipation
Built with high-quality die-cast aluminum housing and a durable PC lens, our lights demonstrate excellent heat dissipation performance, contributing to their longevity and reliability.

4. Easy Installation
With a 0°-180° rotation feature, our underpass lights can be effortlessly installed and adjusted at multiple angles, molding to suit your specific requirements.

5. Sturdy and Durable Construction
Our LED lights are built with robust, corrosion-resistant aluminum for first-rate strength and durability.

6. Ideal for Outdoor Use
With an Ingress protection of IP65, our tunnel lights are weatherproof and impact-resistant, rendering them perfectly fit for outdoor installation.

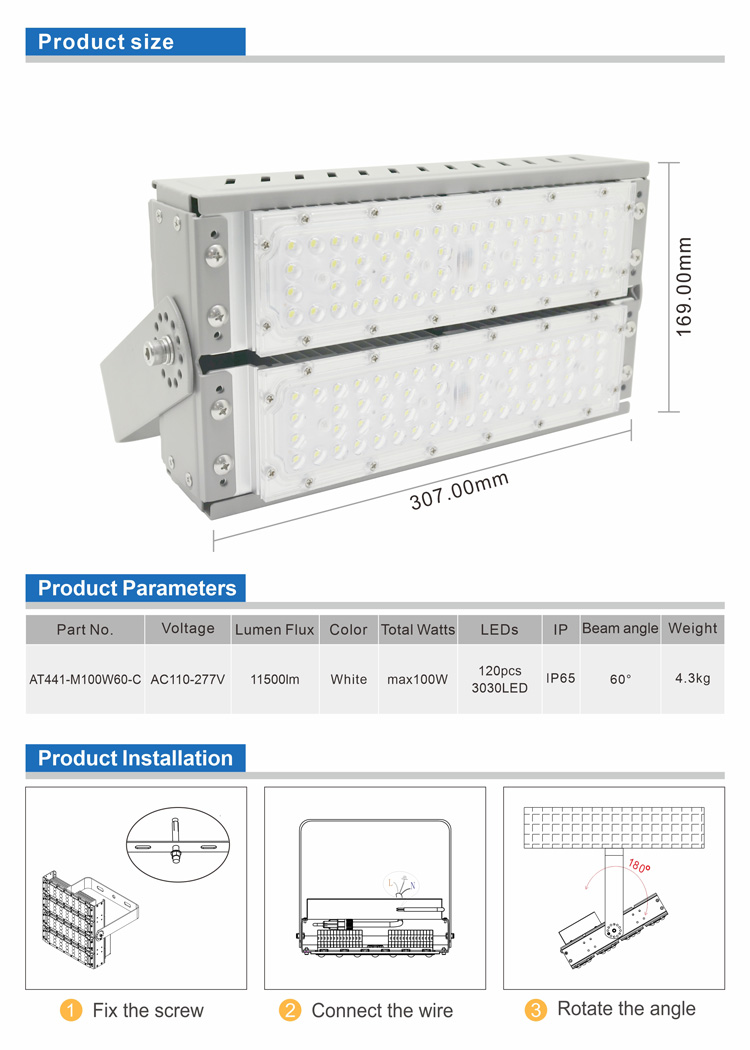

Product Parameters

240v led flood lights

 Model No:  AT441-M100W60-C
Power: 100W
LED type: 120pcs 3030LED
Input Voltage: AC100-277V
operating frequency: 50/60HZ
power-supply efficiency: 93%
power factor: ＞0.9
CRI:  70/80
Luminous Efficiency: 130lm/W-160lm/W
LED light source life: 50000H
operating ambient temperature:  -40℃~50℃，20%~90% H.R
storage temperature: -45℃~55℃，10%~90% H.R
operating ambient temperature:  -40℃~50℃，20%~90% H.R
Luminaire material: aluminium +Q235
Beam Angle:  60°
Weight: 4.3KG
Defend grade:  IP65
Warranty : 2Years



led tunnel light
LED Tunnel Light 100W Product  Application:

LED tunnel lights are mainly used in road tunnels, underground parking lots, subway tunnels, underground walkways, and other lighting places to provide good lighting effects and safety. LED tunnel lights for Tunnel Lighting and Underpass Lighting are made of high-quality materials with excellent anti-shock performance, and are well adapted for roads, railways, and other projects. Tunnel Pass LED Tunnel Lights are made of special reflective materials to achieve uniform illumination and to provide lighting quality and illumination that meet the standards.

Application Scenario
–Tunnel
–Underpass
––Channel
–Corridor
–Cave
led tunnel lighting


How Aglare LED Tunnel Light  Works
Easy to install and simpler to operate, Aglare LED  tunnel lights power on instantly to provide maximum luminous flux for your space. Resilient to voltage fluctuations, the fixture's performance remains steady and reliable.

Customize Outdoor LED Tunnel Light To Meet Your Specific Needs
LED tunnel lights can generally be customized according to customers’ needs. Customers can choose the right power according to their needs and can choose different light sources, such as high luminous efficiency LED, COB LED, etc. Different control methods can be provided, such as constant light, induction control, light control, etc. If you need to use it in explosive areas, you can customize the LED tunnel light to meet the explosion-proof level.

Frequently Asked Questions

Is the light weatherproof?

Yes, our Series Aglare LED Tunnel Light is built with weatherproof qualities, making it perfect for outdoor deployment.

What kind of mounting does it support?

Our LED Tunnel Light is universally designed for both wall and ceiling mounting, offering maximum convenience and adaptability.

Experience enhanced illumination and durability with our Series Aglare Modular Design of LED Tunnel Light & Underpass Lighting. Designed to consistently deliver high-performance in even the harshest environments.
